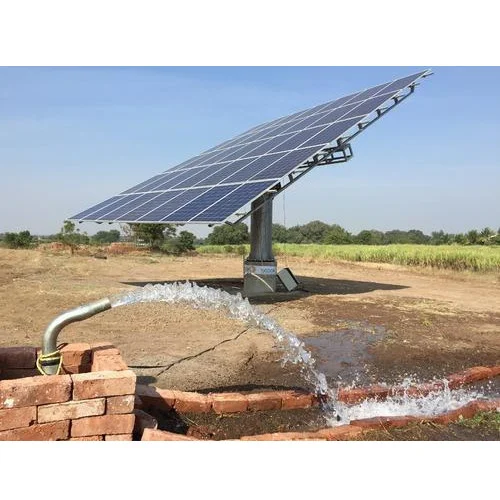

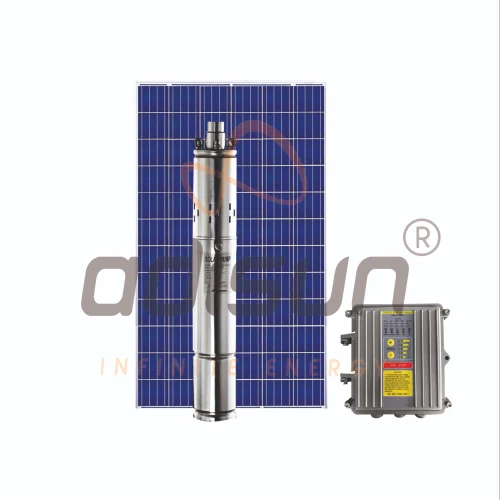

Solar Water Pumping System is a high quality stand-alone system operating directly on solar energy. The system consists of PV modules, inverter, and a 3-phase AC motor pump set (Submersible/Monoblock) which can run independent of grid power or DG set or even battery.
| Specification | Details |
|---|
| Usage/Application | Agriculture |
| Voltage | 220 V AC |
| Capacity | 10 HP |
| Pump Head | 100 m |
| Brand | Adisun |
| Application | Agriculture |
| Country of Origin | Made in India |
Features
- Dusk to dawn operation
- MPPT controller for high efficiency
- Low cost
- No maintenance cost
Technical Specifications
| Parameters | 1HP | 2HP | 3HP | 5HP | 7.5HP |
|---|
| Panel Wattage | 900 W | 1800 W | 2700 W | 4800 W | 6750 W |
| Dynamic Lift Head | 100 ft | 160 ft | 240 ft | 400 ft | 560 ft |
| Efficiency | >95% | >95% | >95% | >95% | >95% |
Voltage and Frequency Parameters
| Voltage | Phase | Frequency |
|---|
| Up to 2HP | 120V | 3 phase, 50Hz |
| Customized motors | 90V-230V | 3 phase, Up to 85Hz |
| 3HP to 30HP | 415V | 3 phase, 50Hz |
| Customized motors | Voltage other than standard rating voltage | 3 phase, Up to 85Hz |
